OpenSCAD, Elixir, SVG
January 15, 2020
For a while now I've been tinkering with an Elixir
Library that is effectively a wrapper for
OpenSCAD. I found the
|> operator to be an
intuitive way of working with models, but at the end of the day it was mostly
syntactic sugar over the OpenSCAD language.
The intent was that I could leverage features of Elixir outside of the scope of OpenSCAD, and I recently added the first feature like this: Slicing.
Given a 3D object, I wanted to be able to take horizontal slices that could be made into physical objects by a number of 2D methods, which could then be stacked in order, recreating the 3D object in that topographical map kind of way.
So enough with the talky talky (writey writey?), let's get to some code and pictures!
I began with a relatively basic model. Create a cube, and then subtract a
cylinder from it, which given the
r1: 0 parameter, makes this a cone.
[ cube(size: [100, 100, 100], center: true), cylinder(r1: 0, r2: 45, h: 50, _fn: 100) ] |> difference()

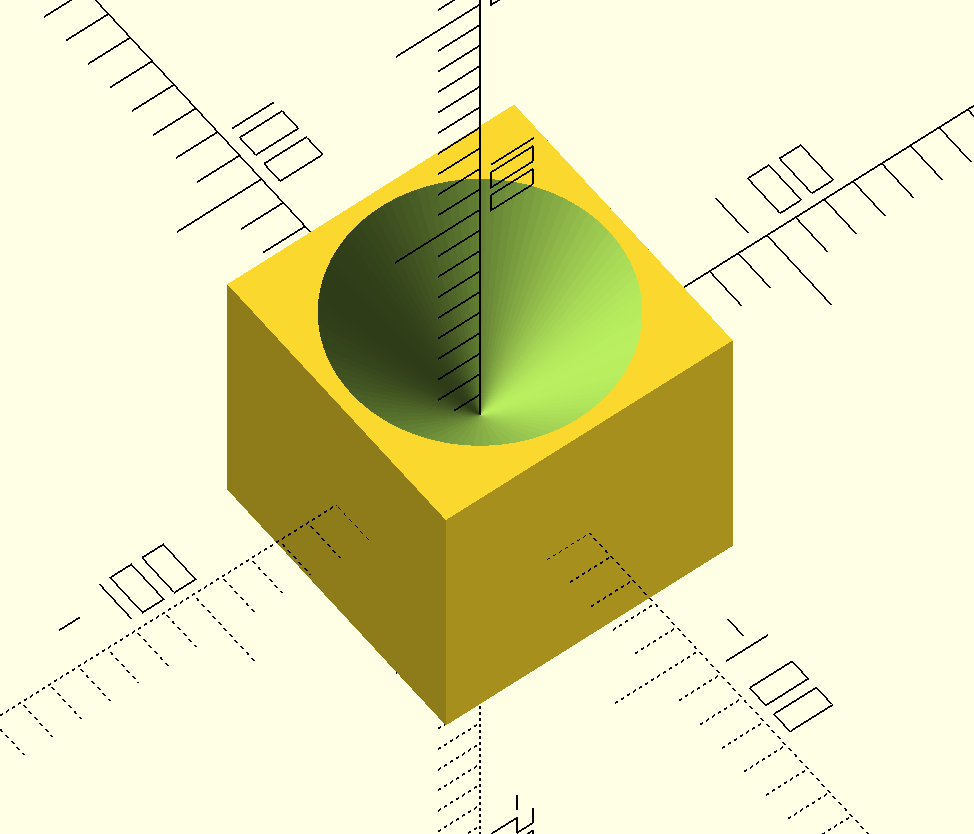

That shape will render in OpenSCAD like this:
Now that we've got the shape, we'll want to slice it up. We can do so by adding this function call to the pipeline.
|> slice(layer: 5, height: 50, name: "output_dir")
This function will start at
z: 0 and take SVG slices at the
height, which for this model will be
50. Anything below
z: 0 will
After running this
output_dir will have a numbered SVG for each layer, and a
cooresponding scad file if you want to check it out in the OpenSCAD app.
Here's the middle layer's SVG file:
That's all well and good, but we're not in this to make SVGs, we're here to make real things!
